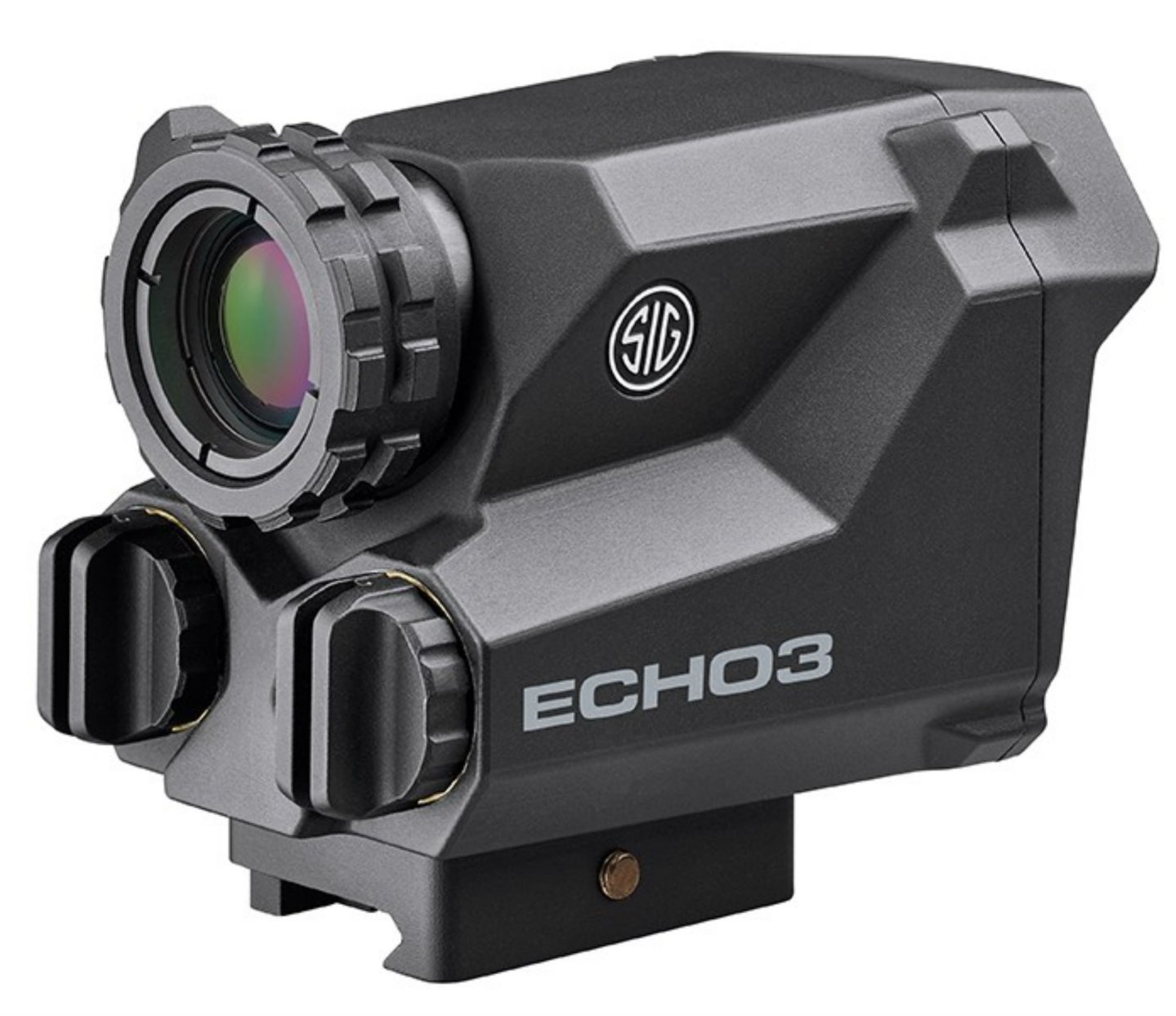

SIG Sauer Electro-Optics introduces the ECHO3 Thermal Reflex Sight, a ultra-compact direct view thermal sight that, thanks to SIG Sauer Ballistic Data Xchange (BDX 2.0) technology, offers the capability to capture images and record video in several different color palettes.
The SIG Sauer Electro-Optics ECHO3 is available in a 1-6x or 2-12x magnification. Equipped with the BDX technology, the ECHO3 can be used with 9 different onboard SmartBDC ballistic holdover reticles or it can be paired with any KILOBDX rangefinder.
A motion activated MOTAC (Motion Activated) display powers up when it senses motion with over 6 hours of continuous runtime, offering video and image recording in several different color palettes, and six brightness settings. The ECHO3 uses an uncooled 320x240 12um VOx LWIR core operating at 30Hz (ITAR Controlled).
SIG Sauer ECHO3, “A massive improvement over traditional eyepiece style thermals”
Andy York, President, SIG Sauer Electro-Optics, explains the most interesting features of the ECHO3: “The innovative direct-view thermal display on the ECHO3 is a massive improvement over traditional eyepiece style thermals which induce eye fatigue and force the shooter to look through the sight. The ECHO3 allows the shooter to sit back and view the thermal display and when targets are identified, the new BDX reticle technology allows for exact aiming solutions in real time.”
The Levelplex anti-cant system allows for scope cant sensitivity down to 0.5°. The ECHO3 Includes a quick disconnect mount, with an easy to adjust zoom lens with throw lever attachment. In the US the SIG Sauer Electro-Optics ECHO3 Thermal Reflex Sight will be available this spring.
SIG Sauer ECHO3 Thermal Reflex Sight Specs
| Sensor: | 320x240 12UM VOX LIWR Core |
| Magnification: | 1-6x
or 2-12x |
| Adjustment
Increments: | 0.5 MOA |
| Objective
Lens Diameter: | 23 mm (1-6) – 40 mm (2-12) |
| Illumination
Settings: | 6
Brightness Settings |
| Overall
Length: | 4.1”/104 mm (1-6) – 4.7”/119 mm (2-12) |
| Overall
Width: | 2.6”/66
mm |
| Overall
Height: | 3.1”/79 m (1-6) – 3.6”/91 mm (2-12) |
| Weight: | 14.5 oz. (1-6) / 16.6 oz. (2-12) |
| Waterproofing: | IPX6 |
| Battery
Life: | Greater than 6 hours of heavy usage utilizing two (2) CR123 lithium batteries |
| Total
Elevation Travel: | 150 MOA x 150 MOA |
| Prices
(MSRP): | (1-6x) 3,899.99 USD - (2-12x) 5,199.99 USD |
More information on the ECHO3 is available on the manufacturer's website.
