Schmidt & Bender 1-8x24 PM II ShortDot Dual CC riflescope

Some weeks ago, with its 1-8x24 PM II ShortDot Dual CC riflescope, Schmidt & Bender won the German Armed Forces (Bundeswehr) tender. So, here it is: this new version of the 1-8x24 PM II ShortDot Dual CC has a FlashDot in the 2nd focal plane and an illuminable reticle at the 1st focal plane.

CC stands for Close Combat, and the advantage of the 1-8×24 with CC is that it offers a combination of a reflex sight with a conventional riflescope, since in CC mode the scope has a true 1 time magnification and is parallax-free up to 7 m.

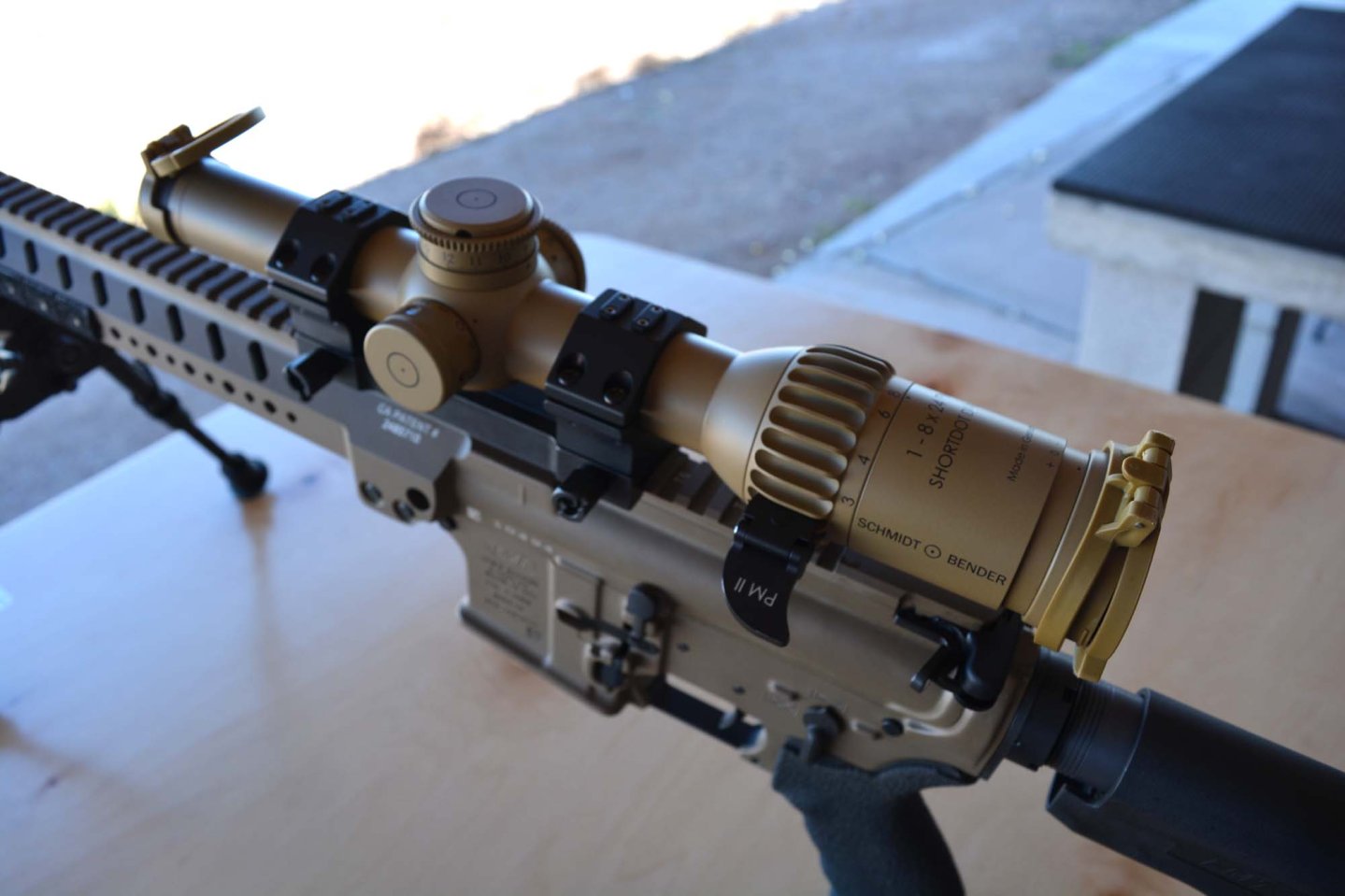

Schmidt & Bender 1-8x24 PM II ShortDot Dual CC at the shooting range
The Schmidt & Bender 1-8x24 PM II ShortDot Dual CC is a compact 2 in 1 system which is also lightweight (639 g). It has a field of view between 35.3m and 4.9m at 100m.

An ideal solution for mobile use in urban terrain from short to medium distances.

As explained by the Manufacturer, “by increasing the magnification above the CC Mode the riflescope is parallax free to 100m. Since the FlashDot is located in the 2nd focal plane the size of the dot is not magnified and stays constant.

Hereby three different illumination increments are eligible. At higher magnifications the Mildot reticle in the 1st focal plane can be used. Thus a opportunity for a direct measurement of target and object sizes is enabled.

With a maximum magnification of 8 the 1-8×24 PM II ShortDot Dual CC is also an ideal riflescope for identification purposes and operations up to medium distances. Hereby the illumination of the reticle can be regulated in 8 different increments, whereof three are optimized for the usage with a night vision.”

Schmidt & Bender 1-8x24 PM II ShortDot Dual CC, lighweight and compact

New riflescope from Schmidt & Bender 1-8x24 PM II ShortDot Dual CC introduced at the SHOT Show 2018
The Schmidt & Bender 1-8x24 PM II ShortDot Dual CC can also be used for identification purposes and operations up to medium distances.

With a length of 293 mm the Schmidt & Bender 1-8x24 PM II ShortDot Dual CC riflescope is a compact 2 in 1 system which is also lightweight (639 g). It has a field of view between 35.3m and 4.9m at 100m.

The elevation and windage turrets are secured against unintended adjustment through a simple locking mechanism.

The Schmidt & Bender 1-8x24 PM II ShortDot Dual CC is available in three different colors: black, RAL8000 and Pantone 7504.

Schmidt & Bender 1-8x24 PM II ShortDot Dual CC: technical data

Field of  view at 100 m:115,8 – 16 ft / 35,3 – 4,9 m
Exit pupil:
9,6 – 3 mm
Eye  relief:3,5 in / 90 mm
Twilight factor:
3,9-13,9
Diopter adjustment range:
-3/+2
Weight:
23,1 oz / 655 g
Reticles:
MilDot CC

Here you have a short video of the presentation of the new riflescopes of Schmidt & Bender:


For more information please visit Schmidt & Bender website.
