4.4

KAHLES new products for 2019: Helia RD red dot sight and K318i riflescope

The new compact reflex sight is designed primarily for driven hunts. With a unique anti-reflection coating for an undisturbed view of the target and a precise 2 MOA red dot for minimal coverage of the target area, it is the ideal sight for intuitive shots. The anti-reflection coating ensures a high image quality without disturbing reflections in the entire field of view. The red dot in the center of the reticle can be manually adjusted in 4 settings for different lighting conditions. In addition, the automatic switch-off function ensures energy-saving operation. For precise adjustment or sighting in, the KAHLES HELIA RD has a perceptible "Easyclick" adjustment mechanism.

KAHLES Helia RD reflex sight: features

The robust and appealing design not only ensures easy operation, it also allows the battery to be easily replaced opening the battery compartment on the side. This way, the Kahles MRDS does not have to be removed from the gun, eliminating the risk of possible shifts. In addition to an orange cap with integrated slot for a spare battery, a Picatinny/Weaver mounting or alternatively an adapter plate for common European red dot mountings, are included. The HELIA RD is already available from specialist retailers for a retail price of around 400 euro.

The Helia RD red dot sight features a unique anti-reflection coating
The Helia RD red dot sight features a unique anti-reflection coating for an undisturbed view of the target.
The KAHLES Helia RD red dot sight with an orange cap with integrated slot.
The Helia RD red dot sight comes with an orange cap with integrated slot for a spare battery.
The robust and appealing design also allows the battery to be easily replaced opening the battery compartment on the side.
The robust and appealing design also allows the battery to be easily replaced opening the battery compartment on the side.

KAHLES Helia RD: technical data

Manufacturer KAHLES KAHLES
Model:
HELIA RD (20018) HELIA RD (20019)
Magnification:
1,0
1,0
Window size (mm):
26 x 22
26 x 22
Impact correction /click:
15 mm / 50 m
15 mm / 50 m
Adjustment range E/W (m / 100m):
4,0 / 2,5
4,0 / 2,5
Length (mm):
55
55
Weight (g):
42
42
Red dot size:
2 MOA
2 MOA
Adjustment illumination (manual):
4 Stufen
4 Stufen
Automatic light
yes yes
Battery type: CR2032
CR2032
Rubber cover with spare battery slot:
yes  yes
Picatinny/Weaver mount: yes
-
Adapter plate: - yes
Warranty (years):
2
2

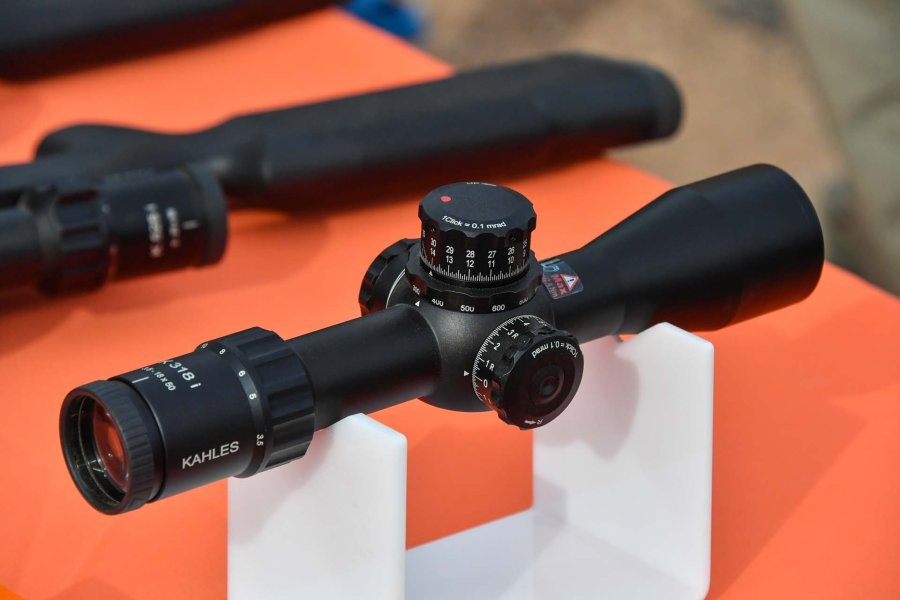

New KAHLES K318i riflescope

KAHLES new products for 2019: Helia RD red dot sight and K318i riflescopes
The K318i riflescope in 3.5-18x50 is now also available with a fine ¼ MOA click adjustment and MOAK reticle.

In view of its performance, the surprisingly compact K318i riflescope in 3.5-18x50 will also be available from April of this year with left-hand side windage as well as a 1/4 MOA (Minute of Angle) click adjustment. To reach the highest performance standards despite its short build design, many years of development work and the use of the latest technologies were required. The optical system with its large field of view and exceptionally high-contrast images set new standards for ultrashort riflescopes. This technical masterpiece is now also available with the side windage on the left, the ergonomically ideal arrangement for right-handed shooters. The combination of optional lateral windage on the left or right with the patented, central positioning of the parallax wheel now also makes it possible for the K318i to comfortably handle all operating elements with the intuitively preferred hand without reaching over from the firing position. This way the shooter can concentrate on the essentials in the competition

In addition to the proven, precise MSR/Ki and SKMR3 reticles on the first focal plane, the sight is now also available with a fine ¼ MOA click adjustment and MOAK reticle. Retail price is 3200 euro.

KAHLES new products for 2019: Helia RD red dot sight and K318i riflescopes
The K318i K318i 3.5-18x50 riflescope with its extremely compact dimensions and appealing, practical design was first presented at the SHOT Show 2018. Now it is available in new model designs.

KAHLES K318i riflescope: technical data

Manufacturer: KAHLES
Model: K318i 3,5-18x50i
Magnification:
3,5 – 18x
Objective lens diameter (mm):
50 mm
Exit pupil diameter (mm):
6,9 – 2,8 mm
Eye relief (mm):
92 mm
Field of View (m/100 m) / (ft/100 yds) 9,3 – 2,0 / 27,8 – 5,5
Diopter compensation (dpt):
-3,5 - +2,5 dpt
Impact correction per click:
0.1 MRAD, ¼ MOA
Adjustment range E/W (m/100 m) - (ft/100 yds): 3,0 / 1,5 m - 9,0 / 4,5
Parallax adjustment (m) / (yds):
25 m bis ∞ / 27 - ∞
Objective filter thread: M52 x 0,75
Length (mm) / (in):
313 mm / 12,32
Weight (g) / (oz):
940 g / 33,2
Tube diameter (mm): 34 mm
Reticle 1. Focal plane: SKMR3, MSR/Ki, MOAK
Illuminated: yes
Windage: left or right
Adjustment direction: cw/ccw
Accessories: Sunshield; Flip Ups; Killflash

For more information, please visit KAHLES website.
