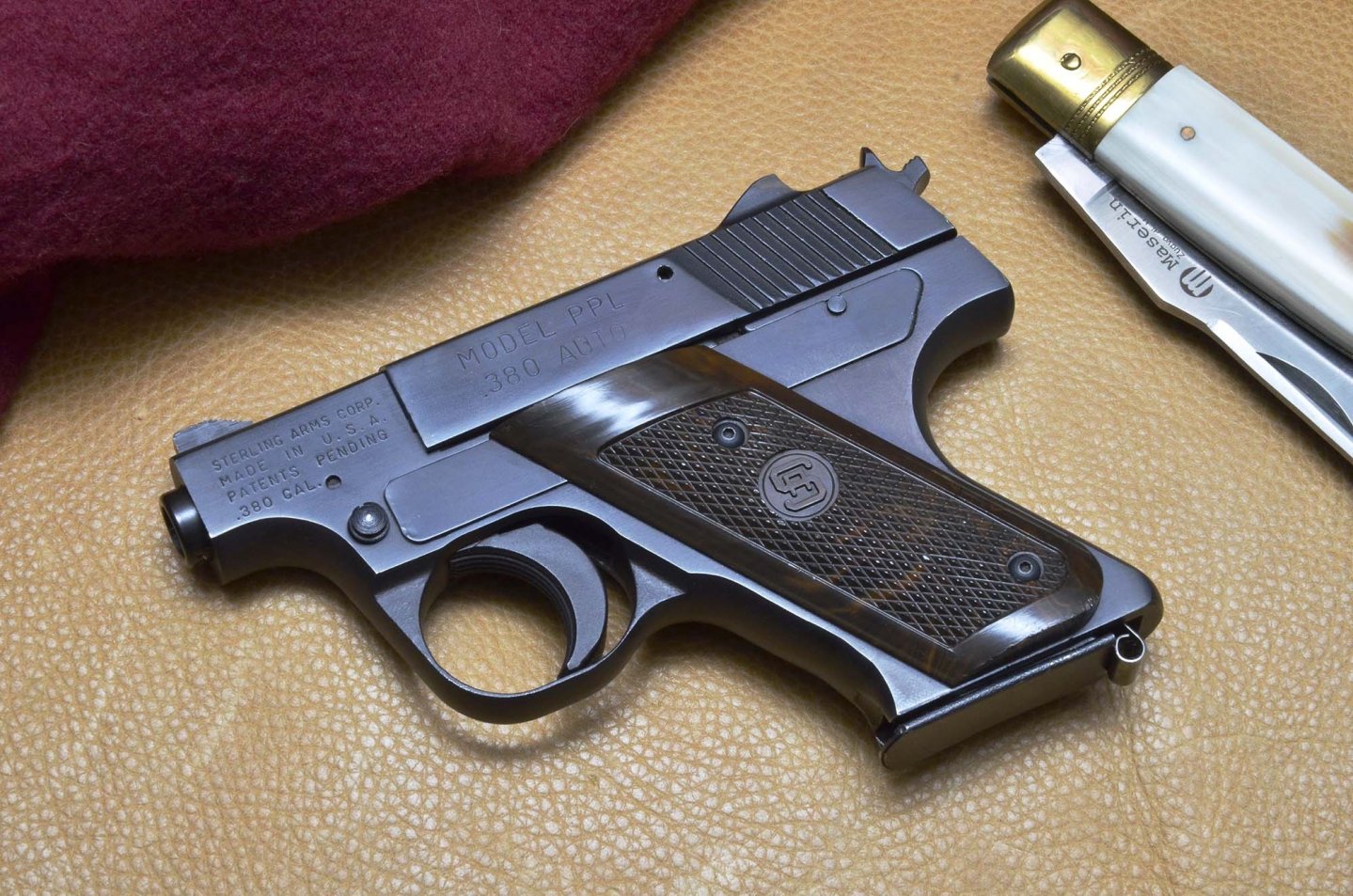

Sterling Arms Model 287 PPL, the ugly duckling in .380 ACP

The right side of the Sterling Arms Model 287 PPL
The right side of the Sterling Arms Model 287 PPL is completely plain. There are no levers, only the safety button.

During our visit to a gun shop we came across a pistol with a really original design and an interesting story that we want to tell you. The protagonist in our story is called Model 287 PPL and it's chambered for the .380 ACP cartridge.

Built by the Sterling Arms Corporation of Lockport, New York, from 1968 to 1971, the 287PPL is a semiautomatic pistol with a very unsettling appearance. But let's take a step back: Sterling Arms opened its doors in the late 1960s on the East Coast of the USA, beginning with the manufacturing of inexpensive .22 Long Rifle pistols like the 285 model, clearly inspired by the High Standard design, which was the most popular at the time. The fate of Sterling Arms Corporation, however, did not go as planned; in a few years the company went into crisis and in 1972 it was acquired by E & R Machine company, which kept it as a subsidiary company until 1983, when it went into final liquidation. It should be noted that the Sterling we are talking about has nothing to do with the British Sterling Engineering Company Ltd, manufacturer of the famous L2A3 submachine gun.

The front sight of the Sterling Arms Model 287 PPL
The front sight is fixed. For a pocket gun it is a bit too high.

At first glance, the Sterling PPL could seem a High Standard to which the barrel and a piece of the grip have been cut off. But the barrel is actually still there – it is just one inch long (2.54 cm), and this makes it a very original firearm. Even the microscopic North American Arms NAA 22S  pocket revolver in .22 Short has a longer barrel: 1.125 in, or 2.85 cm, while among semi-automatic guns the Lilliputian Kolibri pistol in 2.7 mm caliber featured a barrel length of 1.3 inches, or 3.2 cm. The PPL's record seems therefore unassailable – obviously excluding miniature reproductions.  For sure, such a short barrel has negative consequences on accuracy and bullet stability. We did not fire it, but those who did report bullet tumbling on the target, which may not be such a major defect, given the intended use of the gun.

The rear sight of the Sterling Arms Model 287 PPL
The rear sight is also machined into the small slide and there is no way to adjust it.
The single action trigger of the  Sterling Arms Model 287 PPL
The Sterling Arms Model 287 PPL features a single action trigger that controls this small external hammer.

The Sterling PPL under the lens

The single-stack magazine of the Sterling Arms Model 287 PPL
The single-stack magazine has a capacity of eight .380 ACP cartridges.

The Sterling PPL is an  external hammer, blowback semiautomatic pistol, with single action trigger. Barrel and slide are made of steel with a blued finish, grips are black plastic. Sights consist of a notch rear and a ramped front sight integral with slide and frame, so there is no possibility (or need) to adjust them. Considering the intended use of the weapon, i.e. personal defense at short range, they are perhaps too large. The external hammer has a small, rather slippery knurled spur, while the safety is definitely unusual: it is a crossbolt located on the frame, just above the trigger guard, and to disengage it must be pressed down. The one-inch (2.54 mm) long barrel is fixed and is completely enshrouded by the frame. When field disassembling the gun, it is not possible to remove it from its housing.

Wrapping up

The safety button of the Sterling Arms Model 287 PPL
The gun's only external control, the safety button, in an unusual position.

The Sterling 287 PPL is certainly a rugged and no-frills firearm, but it offers some niceties: you will notice that apart from the safety button, placed in an unusual position, there are no other projections on either side of the gun. There are no levers, there is no hold open and the magazine release is a very European-style coiled spring at the grip bottom. We find instead a hole on the left side of the frame, just in front of the slide rear serrations. The function of this hole is ingenious: by retracting the slide and inserting a pin into it, the spring is locked, allowing to remove the slide from the frame. The magazine is single-stack with a capacity of eight .380 ACP cartridges. The weight of the gun is 12.7 oz/360 grams, for an overall length of 5.39”/137 mm. To make a purely dimensional comparison, a Walther PP in .380 ACP measures 6.1”/155 mm in length and has a magazine with a capacity of six cartridges, while the weight is about 23 oz/650 grams. Analyzing only the technical specs, the Sterling 287 PPL was therefore ahead of the competition in terms of concealability and fire power, although this was probably frustrated by the poor accuracy. In any case, it remains an interesting testimony to a period when experimentation, especially in the USA, was frenetic. Certainly, today the Sterling Model 287 PPL can only be a collector's item for fans of strange guns.

The Sterling Arms Model 287 PPL in the hand
The Sterling Arms Model 287 PPL in the hand reveals its size and lack of grace.

Sterling 287 PPL specs

Manufacturer:
Sterling Arms Corporation - USA (dal 1968 al 1971)
Model:287 PPL
Type:
Semi-automatic pistol
Caliber:
.380 ACP
Magazine Capacity: 8 rounds
Action:
Blowback
Trigger:
Single action
Sights:
Fixed
Barrel Length: 1”/2.54 mm
Weight:
12.7 oz/360 g
Overall Length:
5.39”/137mm
