Swarovski Optik dS 4-24x50 P, a new milestone in the segment of riflescopes with automatic aiming point correction

At IWA 2017, Swarovski Optik, a company specializing in premium optics, caused a sensation when it presented the dS 5-25x52 P model, the first riflescope with an integrated laser rangefinder and ballistics calculator for aiming point correction in a housing that also looked like conventional riflescopes in terms of external design. At that time, however, the large main tube diameter of 40mm was still relatively unusual. Today, even purely optical riflescopes designed for use at long ranges are approaching this size, so that it is no longer so noticeable. In 2021, the manufacturer gave the optic an upgrade and launched the Swarovski dS 5-25x52 P Gen. II, to which we dedicated a detailed all4hunters.com test report at the time. Now the Swarovski dS 24-24x50 P is coming onto the market with a further revised optical system and additional digital features.

Highlights of the Swarovski dS 4-24x50 P: laser rangefinder and  automatic ballistic calculation

At the heart of the new dS 4-24x50 P from Swarovski Optik is the integrated ballistic calculation. At the touch of a button, the riflescope measures the distance to the desired point of impact, determines the corrected aiming point and displays it directly in the field of view. In addition to the measured distance, the system also takes into account angle, environmental conditions and your personal ballistics, which can be entered via the Swarovski Optik Hunting App. This app offers even more useful functions, but more on that later.

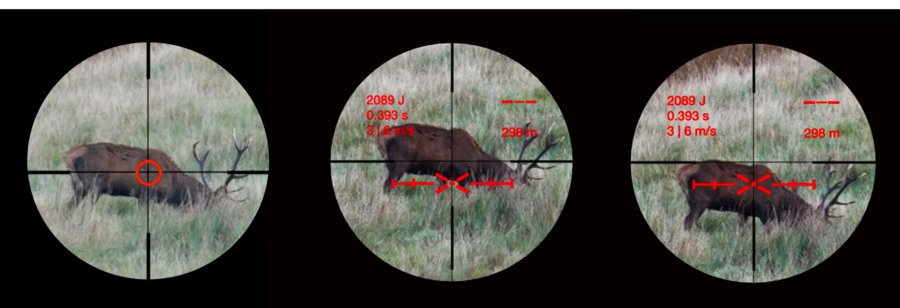

The image shows how the automatic ballistics correction works with the new Swarovski dS 4-24x50 P: on the left, the measuring circle of the laser rangefinder measuring circle is visible over the measurement point, the aiming point determined by the ballistics calculator (indicated by the dot within the X) is shown in the center, and the aiming point determined on the basis of the ballistic profile stored in the optic can be seen on the right. In addition to the measured target distance, the display also shows the impact energy, the flight time and information on the wind to the right and left of the aiming point. The display can be customized as required.

The advantage of automatic aiming point correction for the hunter is obvious: the hunter can concentrate fully on the situation without having to make manual corrections. Especially in stressful and tense hunting situations, this can mean a decisive time and safety advantage.

In addition to its improved digital component, the new dS 4-24x50 P also features the proven optical quality upon which its manufacturer’s reputation is built. This quality is achieved through a new optical system featuring a 6x zoom factor and an expanded field of view and, according to Swarovski Optik, should deliver even better image quality. This is accompanied by a high level of detail recognition as well as a clear, true-to-colour image right to the edges, which should enable the hunter to respond reliably even in difficult lighting conditions. All in all, the riflescope covers a wide range of applications, from stalking to stand hunting at longer distances, and proves its worth not only in expansive terrain.

The Swarovski Optik Hunting App expands the hunting capabilities of the dS 4-24x50 P riflescope

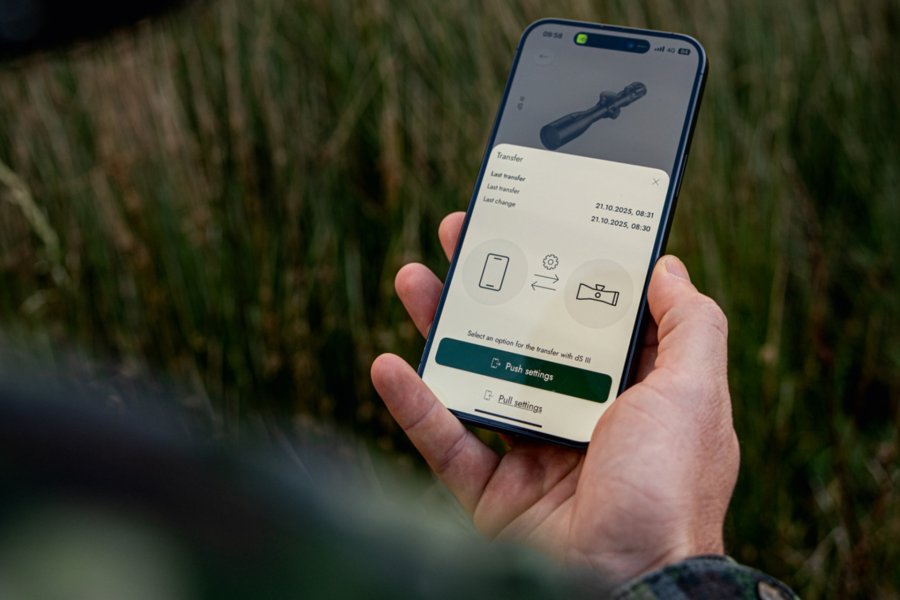

With the Swarovski Optik Hunting App, individual settings can be configured on the dS 4-24x50 P riflescope, such as the storage of ballistic profiles. The app also offers a tracking assistant that can help you narrow down the area you aimed at for your last measurement/shot.

If you view the new dS 4-24x50 P as a digital system, the integration of the Swarovski Optik Hunting App is a central element. The app can be used to create and manage personal ballistic profiles and transfer them directly to the riflescope. The app also offers additional functions such as a digital hunting journal for documenting shots and a tracking assistant. This helps to narrow down the area you aimed at for your last measurement/shot and supports navigation there using a map and compass function – provided the automatic correction has been used beforehand.

The most important functions of the Swarovski dS 4-24x50 P for hunting can also be used without the smartphone app.
When automatic correction is deactivated, the Swarovski dS 4-24x50 P can be used with the  4A-I illuminated dot reticle.

If required, the dS 4-24x50 P can also be used without the automatic aiming correction. For example, if it is not possible to use the laser rangefinder because a clip-on is fitted. In this case, the classic 4A-I reticle can be used in red dot illumination mode. In this case, all display functions are deactivated except for the illuminated central point at the intersection of the crosshairs. However, the SWAROLIGHT function is then automatically activated. This is an intelligent automatic turn-off/turn-on function that operates utilizing a tilt sensor, which helps to extend the life of the CR 123A battery used in this device.

Another aspect that speaks in favor of the new dS 4-24x50 P is its update capability: thanks to so-called "over-the-air" updates, the system can be supplied with new features or upgrades via the smartphone app, which should ensure the long-term usability of the riflescope.

The scope can also be combined with in-house thermal imaging clip-ons such as the TX Encounter or the tM 35+ using the tMA-50 dS adapter, which is expected to be available soon. In conjunction with the thermal imaging devices and components from Swarovski Optik, the manufacturer guarantees a consistent point of impact without the need for re-zeroing. The new Swarovski Optik dS 4-24x50 P is already available in stores in a version for ring mounting at a non-binding recommended retail price of 4,990 euros ($5,799 in the US) or as a version with SR rail mounting, which then costs 100 euros more. The dS 4-24x50 P (ring version) has a main tube diameter of 40mm and weighs 1,080 grams, while the SR version weighs 1,110 grams.

Optional RC remote control facilitates rangefinding with the Swarovski dS 4-24x50 P

The RC remote control resembles a watch and allows distance measurement with the Swarovski dS 4-24x50 LRF riflescope while in the firing position.

The dS 4-24x50 P is designed as part of a modular system. An optional remote control is available, which can be attached to your wrist or the rifle stock with a watch strap so that distance measurement is possible without changing the aiming position. After the required pairing via Bluetooth, the RC remote control, priced at 180 euros (RRP), can be used to control both the measuring function and the display illumination. Incidentally, as long as the Bluetooth connection is active, an LED on the control unit of the riflescope lights up. If you own a TX Encounter thermal imaging device, you can also use the RC remote control for this, although you will need to pair it again when switching between devices.

Swarowski dS 4-24-50 P digital LRF riflescope with automatic aiming point correction: specs and price

The new Swarovski dS 4-24x50 P is primarily aimed at the hunter who wants to be sure of making an ethical and responsible shot with the help of modern digital technology in combination with optical quality from the premium segment, even at longer distances.  The digital riflescope provides the necessary data for this at the touch of a button, displayed directly within the field of view.

Model:

dS 4-24x50 P

Magnification:

4-24x

Objective Lens Diameter:

50mm

Main Tube Diameter:

40mm

Exit Pupil Diameter:

9.5 - 2.1mm

Exit Pupil Distance:

95mm

Field of View (at 100m):

8,9-1,5m

Diopter Adjusment:

-3 to +2 dpt

Reticle:

4A-I with illuminated dot and digital display with automatic aiming point correction

Reticle Brightness:

64 settings

Click Adjustment:

7mm per click at 100m

Max. Adjustment Range (at 100m)

120cm (elevation), 70cm (windage)

Parallax Correction:

50m to ∞

Length:

395mm

Weight:

1,080g (SR version: 1,100g)

Laser Rangefinder Measuring Range:

30 -1,375m

Power Source:

CR 123A battery

Submersion Tightness:

Up to 4m depth

Add-on Program:

Swarovski OptikHunting App

Price (RRP):

4,990 euro (SR version: 5,090 euro)

Our first assessment of the new Swarovski dS 4-24x50 P

With the dS 4-24x50 P, Swarovski Optik consistently pursues the fusion of optics and digital technology. The combination of automatic ballistics calculation, high-quality optics and extensive app connectivity should appeal not least to tech-savvy hunters who value precision, customization and modern assistance functions. The new dS model thus positions itself not only as a riflescope, but rather as a comprehensive assistance system for modern hunting – in line with Swarovski Optik's motto:  "Constantly improving what is good".

The all4hunters team is already looking forward to testing the new Swarovski scope in hunting practice. Of course, you can find out the results first-hand here with us.


You can find out more about the dS 4-24x50 P riflescope and other products from the manufacturer on the Swarovski Optik website.
